Pedrotec

Mooring tails

Characteristics

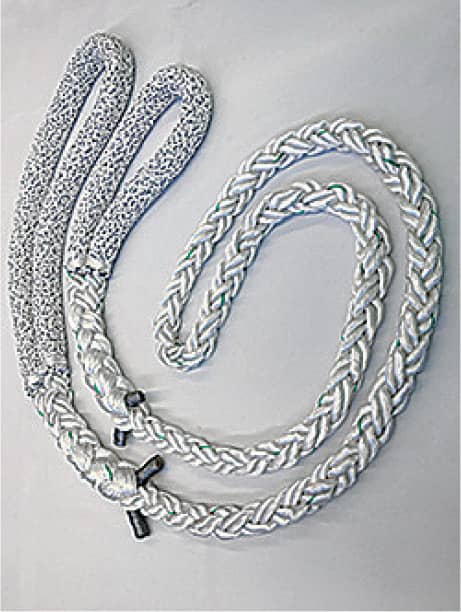

Single braided mooring tails
Nylon tails exhibit very high strengths & excellent dynamic load and shock absorption properties. 22 or 11 mt Nylon mooring tails are ideal as mooring in exposed berths/terminals.
Technical Specifications
Specific gravity1.14
Melting point218 °C
Elongation at breaking25%-30%
Fiber water absorption3-5%
Chemical resistance to ALKALIVERY GOOD
Chemical resistance to ORGANIC SOLVENTEXCELLENT
Chemical resistance to ACIDEXCELLENT
Strength loss in NaOH and H2SO4 in high concentration and temperature.
Technical Data
Dia.
mm		 8 Strand
MBL(tn)		 12/24 Strand
MBL(tn)
485859
5267.568.5
567778.5
6088.589
64101102
68115116
72130130.5
76143.5144
80158.5159.5
84175175.5
88192193
96213213.5
104240241
PES-HT PPL Mixed tails
Mixed tails are produced from mixing HT PPL and Polyester in a special proportion that ensures excellent strength and abrasion resistance.
This type of Tail is the perfect solution offering reduced price and very good breaking load and performance.
Technical Specifications
Specific gravity1.15 (Not Floating)
Average Polyester w/w percentage 25% Melting point 165°C
HT PPL/265°C (PES)
Elongation at breaking15%-18%
Chemical resistance to ALKALIVERY GOOD
Chemical resistance to ORGANIC SOLVENTVERY GOOD
Chemical resistance to ACIDEXCELLENT
Strength loss in NaOH and H2SO4 in high concentration and temperature.
Technical Data
Dia.
mm		 8 Strand
MBL(tn)		 12/24 Strand
MBL(tn)
484647
525253
566162
606769
647879
688688
729698
76108110
80120121
84129132
88137144
96161169
104186196
